The Challenge
Develop a fully portable anesthesia gas monitoring unit with:
- Durable housing for harsh environments
- Lightweight components for easy transport
- Simple, fast-reading LCD interface
- FDA-ready documentation for manufacturing
The device had to accommodate real-time tracking of oxygen, CO2, nitrous oxide, and pulse without becoming bulky or cost-prohibitive.
Our Solution
PrototyperLab delivered a full-stack design—from concept to FDA documentation—on a rapid timeline.
Key Services
- Industrial Design – Durable yet compact form factor for field use
- Mechanical Engineering – Enclosure modeled in Poly-Urethane for cost-effective casting
- Electronics Engineering – Compact, energy-efficient vitals display
- Prototyping – Functional unit with real sensor feedback and front-end interface testing
Key Features

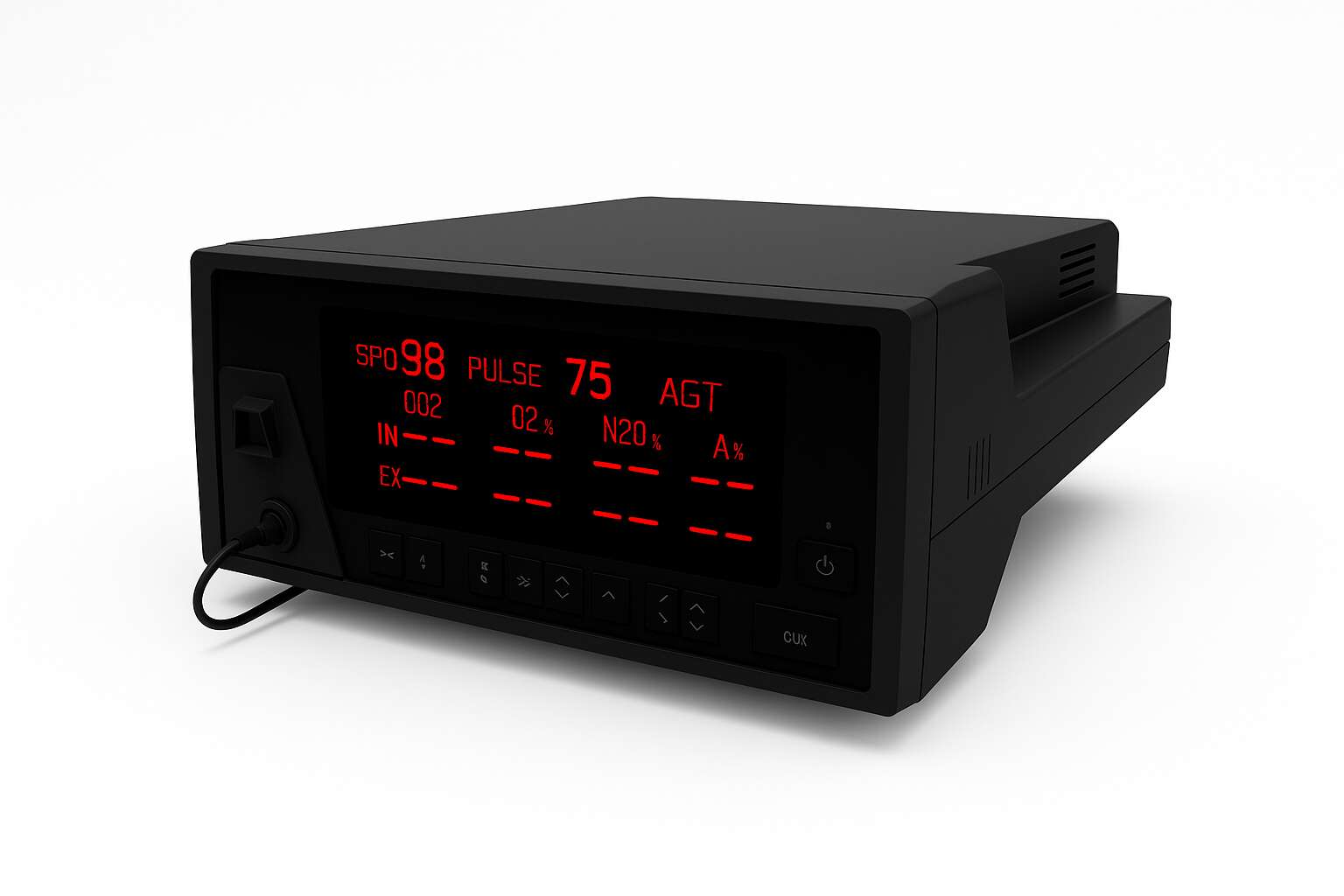

- LCD Monitor
Displays full vitals (SpO2, pulse, CO2, N2O%, AGT%) clearly with fast refresh rates - Button Controls
Tactile and ergonomic for fast response in high-pressure environments - Gas Cable Interface
Compatible with standard critical care lines for health monitoring - Poly-Urethane Housing
Lightweight but rugged casing, optimized for cost and portability
Results & Advantages
- Improved usability via human factors research
- Decreased weight using lighter electronics
- Increased portability without sacrificing performance
- Reduced manufacturing cost with urethane-casted housing
- Delivered full FDA-compliant Design History File (DHF)
Services Provided
- Industrial Design
- Mechanical Engineering
- Electronics Engineering
- Prototyping
- FDA Documentation Prep
